Specifications
Model		V18
Max. Working height	20.2 m
Max. Platform height	18.2 m
Max. up and over clearance	8.0 m
Max. Working radius	11.6 m
Platform width	0.76 m
Platform length	1.8 m
Height – stowed	2.38 m
Length – stowed	8.49 m
Width	2.49 m
Wheelbase	2.5 m
Shipping length	—
Ground clearance (center)	0.3 m
Productivity
Max. Lift capacity	230kg / 350kg
Number of platform occupants	2 / 3
Platform rotation	±80°
Turntable rotation	360° continuous
Vertical jib rotation (up/down)	±70°
Drive speed – stowed	5.0 km/h
Gradeability – stowed	45%
Max. Working angle (Tilt sensor activation)	3°
Turning radius (outside)	4.18 m
Drive and steer	4 × 2
Weight	9100 kg
Tire	33 × 12 - 20
Power
Battery	48V/420Ah
Control voltage	24V
Pump motor	12kW
Drive motor	3.3kW
Charger	48V/60A
Hydraulic Tank	105L
Emergency Power System	12V

Optional Equipment & Configurations

Available Upgrade Options:

Solid Non-Marking Tires - Protect delicate flooring surfaces
Mechanical Anti-Extrusion Protection System - Enhanced operator safety
Air Tube Connection to Platform - Pneumatic tool integration
Lithium Battery Upgrade - Extended runtime and faster charging
Aluminum Alloy Insulated Working Bucket - Electrical work safety
Cold-Resistant, Fire-Resistant & Biodegradable Hydraulic Oil - Environmental protection

Key Performance Features

Industry-Leading Load Capacity

256kg/350kg maximum load capacity delivers superior lifting performance for heavy-duty applications and multiple operators with equipment.

Compact Design for Superior Mobility

Smallest CBM when stowed in the industry ensures easy transportation and reduced shipping costs for maximum operational efficiency.

Enhanced Work Efficiency with S-Shaped Boom

Advanced S-shaped boom design improves work efficiency through superior obstacle navigation and precise positioning capabilities.

Exceptional Maneuverability

5m turning radius provides outstanding maneuverability and flexibility for challenging work environments and narrow space operations.

Extended Battery Performance

48V, 420Ah large-capacity battery with long-endurance design delivers extended operational time and enhanced productivity for demanding applications.

Energy-Efficient Self-Weight Technology

Boom self-weight lowering technology ensures steady, energy-saving operation while reducing power consumption and extending battery life.

Advanced Four-Wheel Drive System

Four-wheel AC drive technology with steering differential control provides strong, steady drive experience with 45° gradeability for challenging terrain navigation.

Precision Control Technology

Combined AC pump control and proportional control technology delivers safer, more stable operation experience with enhanced precision and reliability.

Environmental Excellence

Zero emissions, low noise, and traceless operation make this platform ideal for indoor clean environments and construction operations with strict environmental requirements.

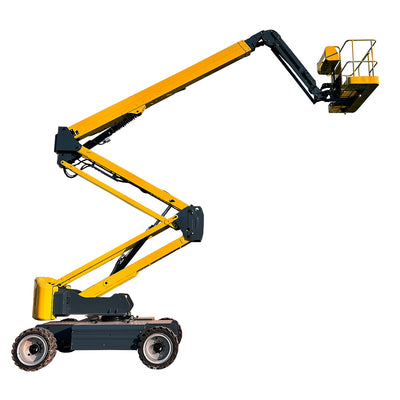

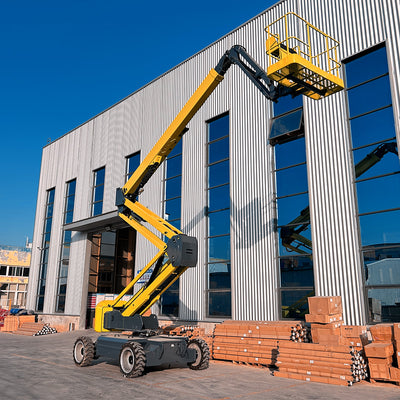

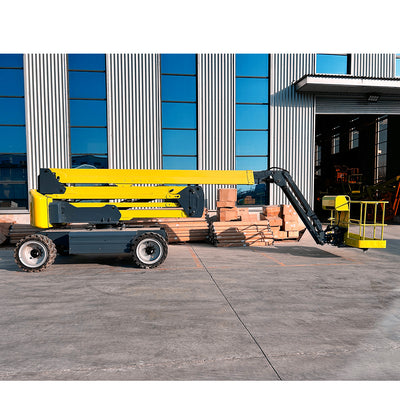

Coman V18 Electric Articulating Boom Lift - High-Performance Multi-Joint Platform for Maximum Reach Applications
