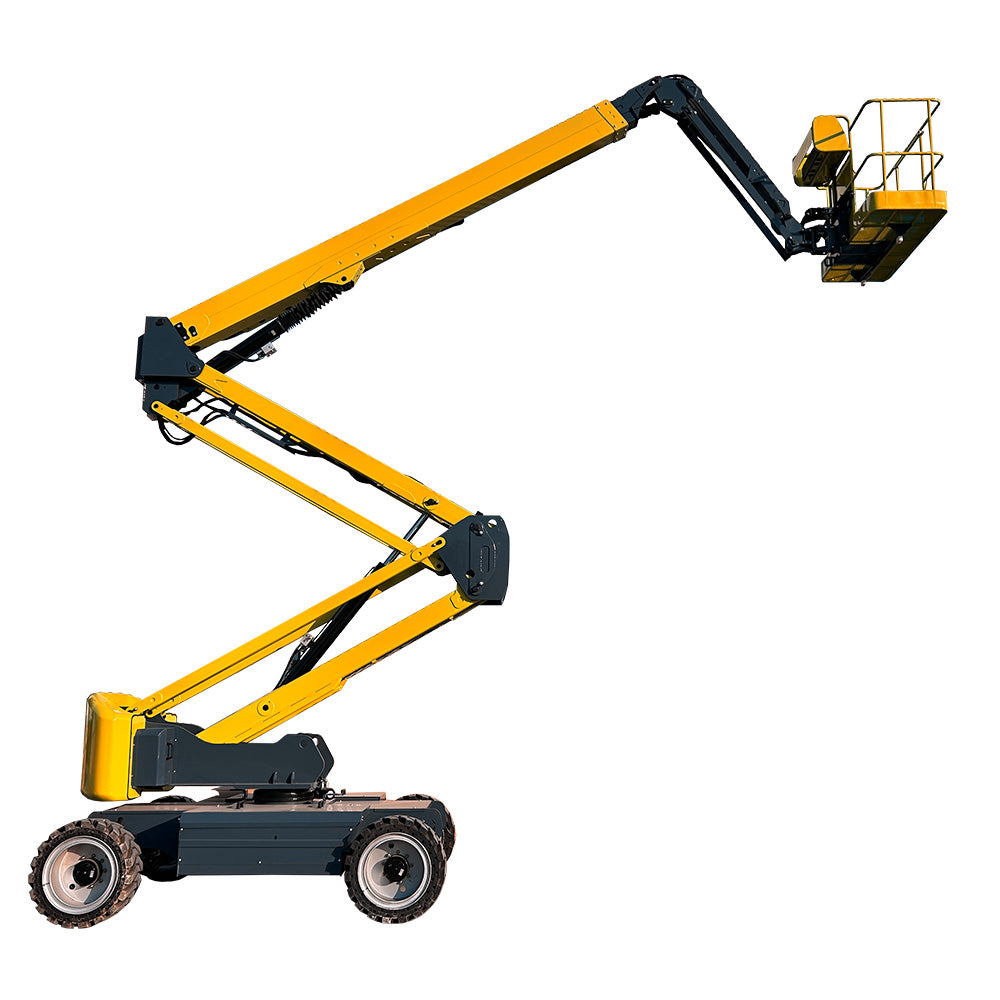

Coman V18 Electric Articulating Boom Lift - High-Performance Multi-Joint Platform for Maximum Reach Applications
PRODUCT DETAILS
| Model | V18 | |
|---|---|---|
Specifications |
||
| Max. Working height | 20.2 m | |
| Max. Platform height | 18.2 m | |
| Max. up and over clearance | 8.0 m | |
| Max. Working radius | 11.6 m | |
| Platform width | 0.76 m | |
| Platform length | 1.8 m | |
| Height – stowed | 2.38 m | |
| Length – stowed | 8.49 m | |
| Width | 2.49 m | |
| Wheelbase | 2.5 m | |
| Shipping length | — | |
| Ground clearance (center) | 0.3 m | |
| Productivity | ||
| Max. Lift capacity | 230kg / 350kg | |
| Number of platform occupants | 2 / 3 | |
| Platform rotation | ±80° | |
| Turntable rotation | 360° continuous | |
| Vertical jib rotation (up/down) | ±70° | |
| Drive speed – stowed | 5.0 km/h | |
| Gradeability – stowed | 45% | |
| Max. Working angle (Tilt sensor activation) | 3° | |
| Turning radius (outside) | 4.18 m | |
| Drive and steer | 4 × 2 | |
| Weight | 9100 kg | |
| Tire | 33 × 12 - 20 | |
| Power | ||
| Battery | 48V/420Ah | |
| Control voltage | 24V | |
| Pump motor | 12kW | |
| Drive motor | 3.3kW | |
| Charger | 48V/60A | |
| Hydraulic Tank | 105L | |
| Emergency Power System | 12V | |
Optional Equipment & Configurations
Available Upgrade Options:
- Solid Non-Marking Tires - Protect delicate flooring surfaces
- Mechanical Anti-Extrusion Protection System - Enhanced operator safety
- Air Tube Connection to Platform - Pneumatic tool integration
- Lithium Battery Upgrade - Extended runtime and faster charging
- Aluminum Alloy Insulated Working Bucket - Electrical work safety
- Cold-Resistant, Fire-Resistant & Biodegradable Hydraulic Oil - Environmental protection
Key Performance Features
Industry-Leading Load Capacity
256kg/350kg maximum load capacity delivers superior lifting performance for heavy-duty applications and multiple operators with equipment.
Compact Design for Superior Mobility
Smallest CBM when stowed in the industry ensures easy transportation and reduced shipping costs for maximum operational efficiency.
Enhanced Work Efficiency with S-Shaped Boom
Advanced S-shaped boom design improves work efficiency through superior obstacle navigation and precise positioning capabilities.
Exceptional Maneuverability
5m turning radius provides outstanding maneuverability and flexibility for challenging work environments and narrow space operations.
Extended Battery Performance
48V, 420Ah large-capacity battery with long-endurance design delivers extended operational time and enhanced productivity for demanding applications.
Energy-Efficient Self-Weight Technology
Boom self-weight lowering technology ensures steady, energy-saving operation while reducing power consumption and extending battery life.
Advanced Four-Wheel Drive System
Four-wheel AC drive technology with steering differential control provides strong, steady drive experience with 45° gradeability for challenging terrain navigation.
Precision Control Technology
Combined AC pump control and proportional control technology delivers safer, more stable operation experience with enhanced precision and reliability.
Environmental Excellence
Zero emissions, low noise, and traceless operation make this platform ideal for indoor clean environments and construction operations with strict environmental requirements.
