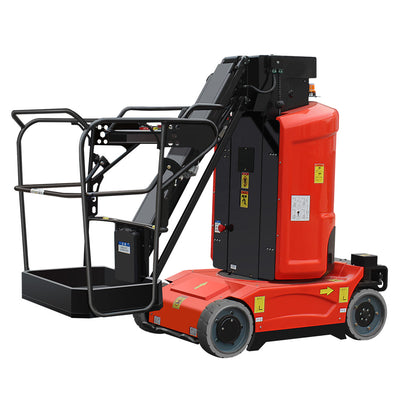

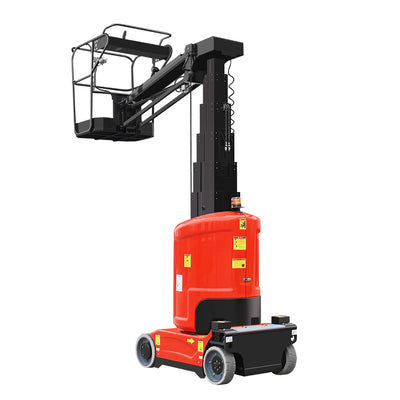

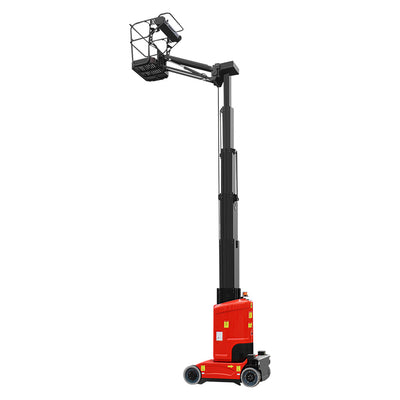

Mast Lift with Jib - Telescopic Vertical Aerial Platform

Mast lift with jib represents revolutionary engineering innovation transforming multiple industries including construction, telecommunications, and emergency services. This ingenious aerial equipment combines the vertical reach advantages of a telescopic mast with the operational versatility of a rotating jib arm, delivering comprehensive applications and exceptional benefits for specialized lifting operations.

Advanced Telescopic Mast Technology

The vertical telescopic mast with jib functions as an extendable tower-like structure capable of reaching varying heights based on specific project requirements. The telescopic design enables compact transportation and rapid deployment, making it an ideal solution for mobile operations. The integrated jib arm provides rotational and maneuvering capabilities, enabling precise access to difficult-to-reach areas with superior control and positioning accuracy.

Stable Platform Performance

Professional mast lift with jib equipment delivers exceptional stability and security for diverse lifting tasks. Whether handling heavy loads, conducting maintenance work on tall structures, or installing equipment in challenging locations, this aerial platform ensures operational safety and efficiency. The telescopic mast extends to desired heights while providing a stable foundation for the jib arm to perform precise positioning and lifting operations.

Versatile Customization Capabilities

Telescopic Height Adjustment Variable height telescopic mast system adapts to specific project requirements, providing optimal reach and positioning flexibility for diverse operational environments.

Precision Jib Control Rotational jib arm with advanced maneuvering capabilities enables access to confined spaces and precise positioning around obstacles with superior operational control.

Heavy Load Capacity Robust construction supports substantial load requirements for equipment installation, maintenance operations, and material handling in elevated applications.

Mobile Deployment Compact design facilitates easy transportation between job sites, reducing logistics costs and setup time for multi-location projects requiring specialized aerial access.

Custom Equipment Integration Versatile platform accommodates additional features including cameras, lighting systems, sensors, and specialized tools based on industry-specific operational requirements.

Professional Applications

Mast lifts with jib excel in telecommunications tower maintenance, construction projects, emergency response operations, industrial facility work, and specialized installation projects. The combination of telescopic reach and jib versatility makes these aerial platforms perfect for applications requiring both vertical access and precise horizontal positioning capabilities.

Contact our aerial lifting specialists to determine if mast lift with jib technology provides the optimal solution for your specific operational requirements and project challenges.

Model	M9.2J
Max. Working Height	11.2m
Max. Platform Height	9.2m
Loading Capacity	200kg
Machine Dimension	2.531.01.99m
Platform Size	0.62*0.87m
Wheelbase	1.22m
Lifting Motor	24V/3KW
Drive Motor	24V/0.9KW
Drive Speed - stowed	4.5km/h
Drive Speed - raised	0.5km/h
Up/Down Speed	42/38 sec
Gradeability	25%
Max. Working Angle	X=2.5°; Y=2.5°
Battery	24V/240Ah
Charger	24V/30A
Tire	φ381*127mm
Weight	2950kg

Proportional Controls
Automatic Pothole Protection
Drivable at Full Height
Non-Marking Tyres
Automatic Brake System
Emergency Stop Button
Emergency Lowering System
Self-Locking Gate
Fault Diagnostic System
Tubing Explosion-Proof System
