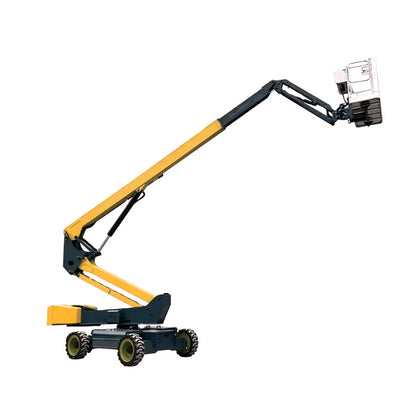

Electric Telescopic Boom Lifts - Professional Straight Boom Access Solutions

Electric telescopic boom lifts, also known as straight boom lifts, are revolutionizing high-altitude work with unmatched safety and efficiency. These fully electric-powered telescopic platforms enable workers to effortlessly access elevated positions across various industries. With advanced functionality and eco-friendly design, Coman electric telescopic boom lifts are leading the way toward a more productive and sustainable future.

Whether for construction, maintenance, or specialized industrial applications, these straight boom aerial platforms have become indispensable tools for professionals seeking reliable elevated access solutions with maximum reach capabilities.

Coman Electric Telescopic Boom Lift Range

Coman manufactures premium electric telescopic boom lifts with working heights ranging from 14 to 20+ meters. All models feature advanced jib arm technology with ±80° rotatable platforms and 355° turntable rotation capabilities. These aerial work platforms deliver exceptional performance even at maximum load capacity, providing extensive working range in both horizontal and vertical directions.

Due to their compact dimensions and electric operation, Coman telescopic boom lifts excel in both indoor and outdoor environments. Our comprehensive electric telescopic lift range ensures you find the perfect aerial access solution for your specific working height requirements.

Video Display | Electric Telescopic Boom Lift Advantages:

Key Performance Benefits:

Wide working range with large load capacity up to 350kg
Lithium battery options available for extended runtime and faster charging
Complete safety protection systems to guarantee operator safety
Superior four-wheel drive capability for multiple terrain adaptability
Energy-saving, zero-emission operation with minimal maintenance requirements
Advanced proportional control system for precise positioning
IP65 waterproof rating for all-weather operation reliability

Model	J16	J18	J20	J24Li	J26Li
Max Working Height	18m	20.5m	21.6m	26.2m	28.3m
Max Platform Height	16m	18.5m	19.6m	24.2m	26.3m
Max Working Radius	11.2m	13.2m	14.5m	20m	21.5m
Platform Dimension (L×W)	1.8×0.75m	1.8×0.75m	1.8×0.75m	2.4×0.9m	2.4×0.9m
Machine Weight	7800kg	8520kg	9100kg	14800kg	16100kg
Load Capacity	300kg	300kg	300kg	300kg/450kg	300kg/450kg
Driving Speed (Stowed)	4.8km/h	4.8km/h	4.8km/h	5.1km/h	5.1km/h
Battery Power	48V/420Ah	48V/420Ah	48V/420Ah	80V/460Ah	80V/460Ah
Pump Motor Power	12kW	12kW	12kW	20kW	20kW
Driving Motor Power	3.3kW	3.3kW	3.3kW	5.2kW	5.2kW
Control Voltage	12V	12V	12V	12V	12V
LFP Battery	Optional	Optional	Optional	Standard	Standard
Power Plus Generator	Optional	Optional	Optional	Optional	Optional
Insulated Platform	Optional	Optional	Optional	Optional	Optional

Platform Control Panel

Bosch Rexroth platform control panel configured with proportional Joystick controls and emergency stop button.

Ground Control Panel

Bosch Rexroth ground control panel configured with IP65 waterproof design and emergency stop button.

Telescopic Boom

The boom adopts self-weight lowering technology and load sensitive hydraulic system to make the movement of boom steady and energy-saving.

Platform

The platform can be automatically leveled with ±80° rotation range.

Turntable

360° turntable continuous rotation helps the platform to reach worksites flexibly.

Four-Wheel Drive System

Advanced four-wheel AC driven technology and steering differential control technology greatly reduce the tire wear and motor overload rate.

Tires

360° turntable continuous rotation helps the platform to reach worksites flexibly.

Drag Chain

International brand drag chain of the telescopic boom provides safety protection and guiding capabilities for the cables inside the booms.
