Coman Articulating Boom Lifts - Compact Performance for Low-Height Access

Engineered for versatility and precision, Coman articulating boom lifts deliver exceptional performance for aerial work up to 11.5 meters. These intelligent platforms excel in construction projects, interior decoration, telecommunications installation, signage placement, and airport maintenance operations.

Superior Design Features: Our compact, lightweight construction ensures outstanding maneuverability in confined areas where larger equipment cannot operate. The innovative design prioritizes mobility without compromising stability, making these lifts the preferred choice for small-scale commercial operations, residential projects, and warehouse environments.

Advanced Control Technology: Equipped with precision joystick controls, operators enjoy smooth, proportional movement for exact positioning. The durable aluminum alloy platform offers convenient assembly and disassembly capabilities, while the narrow 1.27-meter profile provides exceptional access through standard doorways and tight passages.

Versatile Applications: Whether you're managing facility maintenance, retail installations, or specialized access requirements, Coman boom lifts deliver reliable single-operator efficiency. The perfect solution for businesses seeking cost-effective aerial access without the complexity of larger industrial platforms.

Key Benefits:

Maximum 11.5m working height for diverse applications
Ultra-compact design for superior site accessibility
Single-person operation reduces labor costs
Aluminum construction ensures durability and portability
Precision controls for exact positioning requirements

Technical Specifications

Parameters	V9
Specifications
Max. Working Height	11.3m
Max. Platform Height	9.3m
Max. Up and Over Clearance	4.3m
Max. Working Radius	6.25m
Platform Width	0.7m
Platform Length	1.2m
Height - Stowed	2.0m
Length - Stowed	5.2m
Overall Width	1.27m
Wheelbase	1.75m
Shipping Length	3.8m
Ground Clearance - Center	0.14m
Performance
Max. Lift Capacity	200kg
Platform Occupants	2 persons
Platform Rotation	±80°
Turntable Rotation	355°
Vertical Jib Rotation (Up/Down)	±70°
Drive Speed - Stowed	5.0 km/h
Gradeability - Stowed	35%
Max. Working Angle (Tilt Sensor)	3°
Turning Radius (Outside)	2.82m
Drive Configuration	2×2
Total Weight	4800kg
Tires	22×7×17
Power System
Battery	48V/320Ah
Control Voltage	24V
Pump Motor Power	4kW
Drive Motor Power	3.3kW
Charger	48V/35A
Hydraulic Tank Capacity	20L
Emergency Power System	24V

Product Performance Features

Working Platform
Platform size: 1.4m × 0.7m
Load capacity: 200kg
Platform rotation: 160°

Power
320Ah/48V DC Power Supply

Safety
Descent & Movement Alarms
Tilt Alarm
Horn
Platform and chassis emergency stops
Emergency Power Unit
Two-wheel brake system
Smart Speed Control

Drive
Two-Wheel Drive

Other Features
Equal proportion automatic leveling system
Proportional Joystick Controls
Drive Enable
Hour Meter
355° Turntable Non-continuous Rotation
Positive Traction Two Wheel Drive
Full speed motor
Telematics Pre-interface
Active defense system
Harsh Environment Kits
Thumb Rocker Steer
Manual emergency recovery

Option Availability

Solid, non-marking tires
Mechanical anti-extrusion protection system
Air tube connection to platform (optional)
Lithium battery
Aluminum alloy and insulated working bucket
Cold-resistant, fire-resistant, and biodegradable hydraulic oil

Functional Features

1.The V09 is designed to be lightweight, energy-efficient, and exceptionally compact, making it easy to navigate tight spaces. This 9-meter class electric articulating boom lift is built to meet diverse customer needs with an advanced intelligent control system, ergonomic design, and a maintenance-friendly layout. Its lubrication-free structure ensures minimal upkeep, while a comprehensive range of safety features and flexible configuration options provide reliable protection and user convenience.

2.The unique "Σ-shaped" boom structure offers outstanding flexibility for both vertical lifting and horizontal outreach, enabling the platform to overcome obstacles with ease. The platform supports 160° rotation for a broader operational range, and its streamlined turntable design improves efficiency even in confined areas. The lift's storage mode is easily switchable, and the aluminum alloy work basket is designed for quick assembly and removal, supporting a variety of work scenarios.

3.Featuring an intuitive control panel and precise electro-hydraulic proportional controls, this lift delivers smooth, full-range operation that’s easy for any operator to master. Advanced safety measures—such as chassis tilt protection, emergency descent, controlled speed limits, and gentle start-stop technology—ensure safe and efficient performance across all job sites.

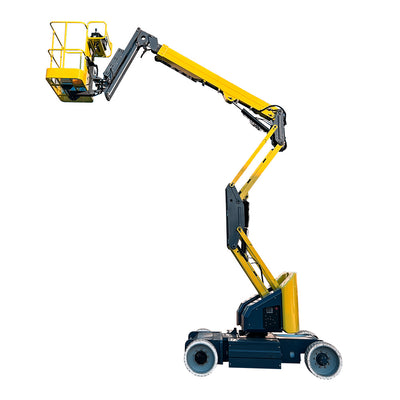

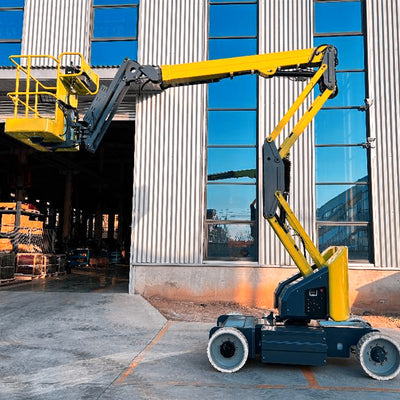

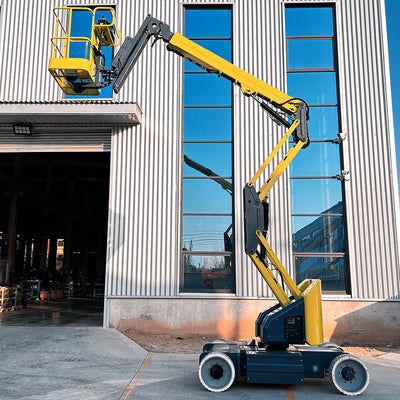

Electric Articulating Boom Lift Multi-Joint Access V9
