Parameter

Models	Z10D	Z13D	Z16D
Max Working Height	12m	15m	18m
Max Platform Height	10m	13m	16m
Platform Dimension (L*W)	3.95×1.83m	3.95×1.83m	3.95×1.83m
Machine Length (Stowed)	4.2/4.81m	4.2/4.81m	4.2/4.81m
Machine Width (Stowed)	2.28m	2.28m	2.28m
Machine Height (Stowed)	2.81m	3.03m	3.25m
Platform Extension Length	1.22/1.52m	1.22/1.52m	1.22/1.52m
Ground Clearance	0.23m	0.23m	0.23m
Wheelbase	2.84m	2.84m	2.84m
Weight	6850kg	7350kg	8850kg
Platform Load Capacity	1150kg	680kg	680kg
Extended Platform Load Capacity	230kg	230kg	230kg
Max Platform Occupancy	7 Persons	5 Persons	5 Persons
Power	35.5Kw/2600rpm	35.5Kw/2600rpm	35.5Kw/2600rpm
Control Voltage	12V	12V	12V

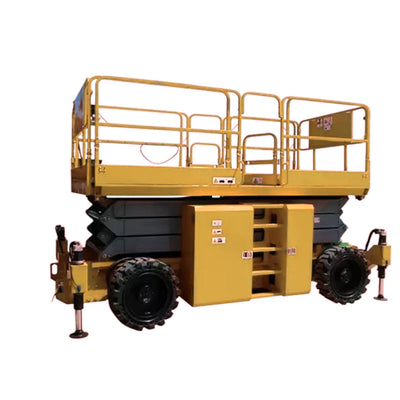

Diesel Scissor Lift - Heavy-Duty Outdoor Aerial Platform

Scissor lift platforms feature two distinct power configurations: battery-powered and engine-powered types, designed to adapt to different working environments and operational requirements. Diesel-powered scissor lift machines excel in outdoor activities and rough terrain applications due to their robust and durable construction. These heavy-duty aerial platforms extend from 10 meters up to 16 meters above ground level, providing construction-oriented capabilities superior to electric scissor lifts for demanding outdoor projects.

Robust Outdoor Performance Technology

Diesel scissor lifts incorporate advanced four-wheel drive systems with positive traction control, enabling reliable operation across challenging terrain and construction sites. The powerful diesel engine provides extended operating duration without battery charging requirements, making these aerial platforms ideal for long-duration projects and remote locations where electrical power may be limited or unavailable.

Professional Diesel Scissor Advantages

Powerful Engine Performance Robust diesel engine with four-wheel drive system delivers exceptional off-road performance and superior traction control for challenging outdoor environments and construction applications.

Advanced Stability Systems Hydraulic one-button leveling outriggers provide enhanced stability and secure platform positioning, ensuring safe operation on uneven terrain and slopes during elevated work.

Extended Platform Design Double-extended platform configuration offers large load capacity with wider work scope, accommodating multiple operators, tools, and materials for comprehensive project completion.

Elevated Drive Capability Platform controls enable operators to drive and steer the lift while elevated, providing enhanced mobility and positioning flexibility during aerial work operations without lowering the platform.

Safety Warning Systems Integrated work lights serve as visual signals to maintain safety awareness around the working area, alerting ground personnel and enhancing overall jobsite safety protocols.

All-Weather Operation Diesel power system enables reliable operation in various weather conditions and outdoor environments where electric alternatives may be impractical or insufficient.

Construction-Grade Applications

Diesel scissor lifts serve essential roles in construction, infrastructure projects, industrial maintenance, and outdoor facility work requiring extended reach and heavy-duty performance. The combination of diesel reliability, four-wheel drive capability, and robust construction makes these aerial platforms perfect for demanding outdoor applications where electric equipment cannot provide adequate performance.

Professional diesel scissor lift equipment delivers the power, durability, and operational flexibility required for challenging construction and industrial aerial access projects.
