Specifications
Model		V20
Max. Working height	22.5 m
Max. Platform height	20.5 m
Max. up and over clearance	9.4 m
Max. Working radius	11.8 m
Platform width	0.76 m
Platform length	1.8 m
Height – stowed	2.38 m
Length – stowed	8.49 m
Width	2.49 m
Wheelbase	2.5 m
Ground clearance (center)	0.3 m
Productivity
Max. Lift capacity	230kg / 350kg
Number of platform occupants	2 / 3
Platform rotation	±80°
Turntable rotation	360° continuous
Vertical jib rotation (up/down)	±70°
Drive speed – stowed	5.0 km/h
Gradeability – stowed	45%
Max. Working angle (Tilt sensor activation)	3°
Turning radius (outside)	4.18 m
Drive and steer	4 × 2
Weight	10,000 kg
Tire	33 × 12 - 20
Power
Battery	48V/420Ah
Control voltage	24V
Pump motor	12kW
Drive motor	3.3kW
Charger	48V/60A
Hydraulic Tank	105L
Emergency Power System	12V

Optional Equipment & Upgrade Configurations

Premium Upgrade Options Available:

Solid Non-Marking Tires - Floor protection for indoor applications
Mechanical Anti-Extrusion Protection System - Enhanced operator safety
Air Tube Connection to Platform - Pneumatic tool integration capability
Lithium Battery Upgrade - Extended runtime and faster charging cycles
Aluminum Alloy Insulated Working Bucket - Electrical work safety compliance
Cold-Resistant, Fire-Resistant & Biodegradable Hydraulic Oil - Environmental protection

Advanced Performance Features

Superior Load Capacity

Industry-leading 230kg/350kg load capacity provides exceptional lifting performance for heavy-duty applications and multiple operators with professional equipment.

Compact Transport Design

Smallest CBM when stowed in the industry ensures cost-effective transportation and easy logistics management for maximum operational efficiency.

Optimized Work Efficiency

Advanced S-shaped boom design significantly improves work efficiency through superior obstacle navigation and precise positioning in complex environments.

Exceptional Maneuverability

5m turning radius delivers outstanding maneuverability and flexibility for challenging work environments and confined space operations.

Extended Battery Performance

48V, 420Ah large-capacity battery with long-endurance design provides extended operational time and enhanced productivity for demanding professional applications.

Energy-Efficient Technology

Boom self-weight lowering technology ensures steady, energy-saving operation while reducing power consumption and maximizing battery life.

Advanced Four-Wheel Drive System

Four-wheel AC drive technology with steering differential control provides strong, steady drive experience with impressive 45° gradeability for challenging terrain navigation.

Precision Control Technology

Combined AC pump control and proportional control technology delivers safer, more stable operation experience with enhanced precision and operational reliability.

Environmental Excellence

Zero emissions, low noise, and traceless operation make this platform ideal for indoor clean environments and construction operations with strict environmental compliance requirements.

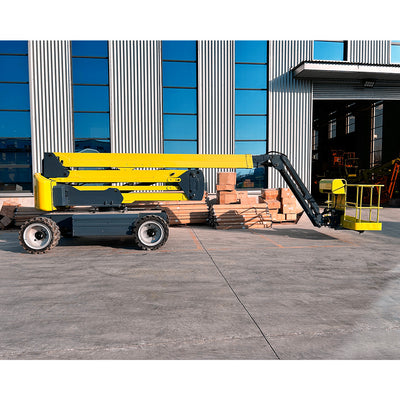

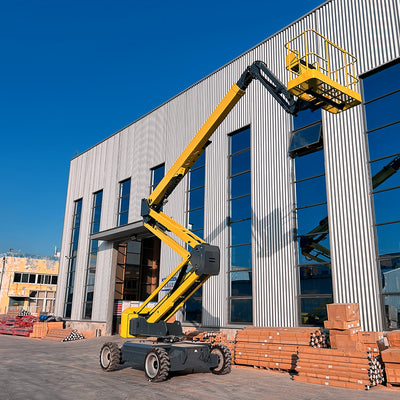

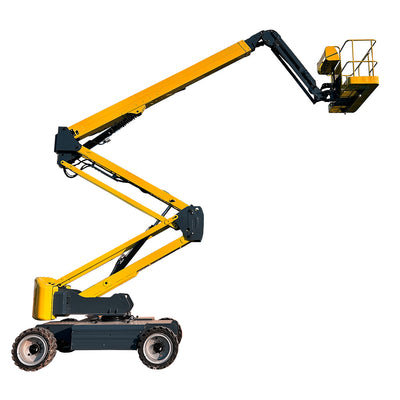

Coman V20 Electric Articulating Boom Lift - Maximum Reach Multi-Joint Platform for Heavy-Duty Professional Applications
