Specifications
Model		V16
Max. Working height	17.7 m
Max. Platform height	15.7 m
Max. up and over clearance	7.5 m
Max. Working radius	8.9 m
Platform width	0.76 m
Platform length	1.4 m
Height – stowed	2.0 m
Length – stowed	7.2 m
Width	1.90 m
Wheelbase	2.0 m
Shipping length	—
Ground clearance (center)	0.25 m
Productivity
Max. Lift capacity	230 kg
Number of platform occupants	2
Platform rotation	±80°
Turntable rotation	355°
Vertical jib rotation (up/down)	±70°
Drive speed – stowed	5.0 km/h
Gradeability – stowed	30%
Max. Working angle (Tilt sensor activation)	3°
Turning radius (outside)	2.97 m
Drive and steer	2×2
Weight	6630 kg
Tire	250-15
Power
Battery	48V/320Ah
Control voltage	24V
Pump power	4kW
Drive motor	3.3kW
Charger	48V/35A
Hydraulic Tank	20L
Emergency Power System	24V

Product Productivity

Working Platform

Platform size: 1.4m × 0.7m
Load capacity: 230kg
Platform rotation: 160°

Power

320Ah/48V DC Power Supply

Safety

Descent & Movement Alarms
Tilt Alarm
Horn
Platform and chassis emergency stops
Emergency Power Unit
Two-wheel brake system
Smart Speed Control

Drive

Two-Wheel Drive

Other Features

Equal proportion automatic leveling system
Proportional Joystick Controls
Drive Enable
Hour Meter
355° Turntable Non-continuous Rotation
Positive Traction Two Wheel Drive
Full speed motor
Telematics Pre-interface
Active defense system
Harsh Environment Kits
Thumb Rocker Steer
Manual emergency recovery

Option Availability

Solid, non-marking tires
Mechanical Anti-Extrusion Protection System
Air tube connection to platform option
Lithium Battery
Aluminum alloy and insulated working bucket
Cold-resistant, fire-resistant, and biodegradable hydraulic oil

Key Features & Advanced Performance

Lightweight & Energy-Efficient Design

The Coman V16 electric articulating boom lift delivers exceptional performance with its lightweight, compact construction and outstanding battery life. This 16-meter class electric mobile articulating platform features intelligent control systems, user-friendly layout, and maintenance-free design for maximum operational efficiency. Comprehensive safety protection and rich configuration options ensure reliable performance in demanding professional environments.

Performance Advantages:

Extended battery life for continuous operation
Lightweight construction enhances portability and efficiency
Energy-efficient electric power system with zero emissions
Maintenance-free components minimize downtime
Intelligent control technology for precise positioning

Advanced S-Shaped Multi-Joint Boom System

Our innovative S-shaped boom design combines compact structure with flexible extension capabilities, enabling precise vertical lifting, horizontal reach, and superior obstacle-bypassing performance. The 160° rotating platform maximizes working coverage while the streamlined turntable design with compact layout enhances work efficiency. Quick storage mode switching and flexible aluminum alloy work platform assembly optimize operational versatility.

Technical Features:

Multi-joint S-shaped boom for complex positioning tasks
160° platform rotation for comprehensive work coverage
Superior obstacle clearance and navigation capabilities
Quick-change storage configuration for transport efficiency
Durable aluminum alloy platform with flexible assembly

Intuitive Controls with Advanced Safety Technology

Full-range operation capabilities are enhanced through our user-friendly control interface featuring intuitive panel design and straightforward operation. The electro-hydraulic proportional control system delivers accurate and efficient performance while incorporating comprehensive safety features including chassis tilt protection, emergency descent, speed limiting controls, and flexible start-stop technology.

Control & Safety Systems:

Electro-hydraulic proportional control for precise operation
Intuitive control panel with user-friendly interface
Advanced chassis tilt protection system
Emergency descent and landing safety features
Smart speed control with automatic limiting
Flexible start-stop technology for enhanced operator safety

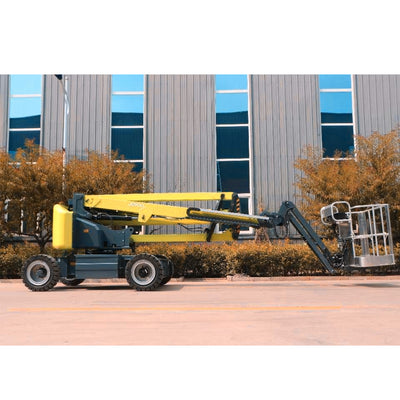

Coman V16 Electric Articulating Boom Lift - Professional Multi-Joint Access Platform for Heavy-Duty Applications
