Parameters

Specifications
Model		V11
Max. Working height	12.5 m
Max. Platform height	10.5 m
Max. up and over clearance	4.65 m
Max. Working radius	7.15 m
Platform width	0.7 m
Platform length	1.2 m
Height – stowed	2.0 m
Length – stowed	5.6 m
Width	1.50 m
Wheelbase	1.95 m
Shipping length	4.35 m
Ground clearance (center)	0.14 m
Productivity
Max. Lift capacity	200 kg
Number of platform occupants	2
Platform rotation	±80°
Turntable rotation	355°
Vertical jib rotation (up/down)	±70°
Drive speed – stowed	5.0 km/h
Gradeability – stowed	35%
Max. Working angle (Tilt sensor activation)	3°
Turning radius (outside)	3.23 m
Drive and steer	2×2
Weight	5000 kg
Tire	27×7×17
Power
Battery	48V/320Ah
Control voltage	24V
Pump power	4kW
Drive motor	3.3kW
Charger	48V/35A
Hydraulic tank	20L
Emergency Power System	24V

Product Productivity
Working Platform	Platform size: 1.4m × 0.7m Load capacity: 200kg Platform rotation: 160°
Power	320Ah/48V DC Power Supply
Safety	Descent & Movement Alarms Tilt Alarm Horn Platform and chassis emergency stops Emergency Power Unit Two-wheel brake system Smart Speed Control
Drive	Two-Wheel Drive
Other Features	Equal proportion automatic leveling system Proportional Joystick Controls Drive Enable Hour Meter 355° Turntable Non-continuous Rotation Positive Traction Two Wheel Drive Full speed motor Telematics Pre-interface Active defense system Harsh Environment Kits Thumb Rocker Steer Manual emergency recovery

Option Availability
Solid, non-marking tires
Mechanical Anti-Extrusion Protection System
Air tube connection to platform option
Lithium Battery
Aluminum alloy and Insulated working bucket
Cold-resistant, fire-resistant and biodegradable hydraulic oil

Key Features & Benefits

Lightweight & Energy-Efficient Design

The Coman V11 electric articulating boom lift delivers exceptional performance with its lightweight, compact construction and superior battery life. This 11-meter class electric mobile articulating platform features intelligent control systems, user-friendly layout, and maintenance-free design for maximum operational efficiency. Advanced safety protection and comprehensive configuration options ensure reliable performance in demanding work environments.

Key Benefits:

Extended battery life for all-day operation
Compact design for tight space maneuverability
Intelligent control system for precise operation
Maintenance-free components reduce downtime
Comprehensive safety features protect operators

Advanced "S-Shaped" Articulating Boom Technology

Our innovative S-shaped boom design combines compact structure with flexible extension capabilities, enabling vertical lifting, horizontal reach, and superior obstacle-bypassing performance. The 160° rotating platform maximizes working range while the narrow turntable design with compact layout enhances work efficiency. Quick storage mode switching and flexible aluminum alloy work basket assembly optimize versatility.

Performance Features:

Multi-joint articulating arm for precise positioning
160° platform rotation for maximum reach
Superior obstacle clearance capabilities
Quick-change storage configuration
Lightweight aluminum alloy platform construction

Intuitive Control & Enhanced Safety Systems

Full-range operation becomes effortless with our user-friendly control panel featuring intuitive interface design. The electro-hydraulic proportional control system delivers accurate and efficient performance while providing essential safety features including chassis tilt protection, emergency descent, speed limiting, and flexible start-stop technology.

Safety & Control Features:

Proportional joystick controls for smooth operation
Automatic chassis tilt protection system
Emergency descent and recovery functions
Smart speed control technology
Multiple safety limit switches and alarms

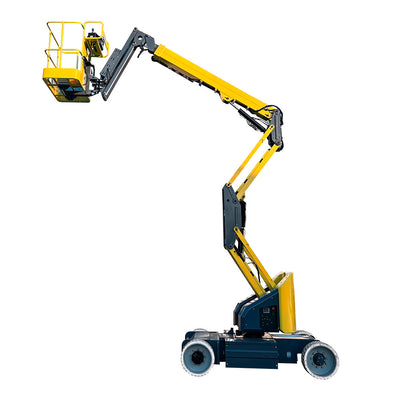

Coman V11 Electric Articulating Boom Lift - Advanced Multi-Joint Access Platform for Professional Applications
